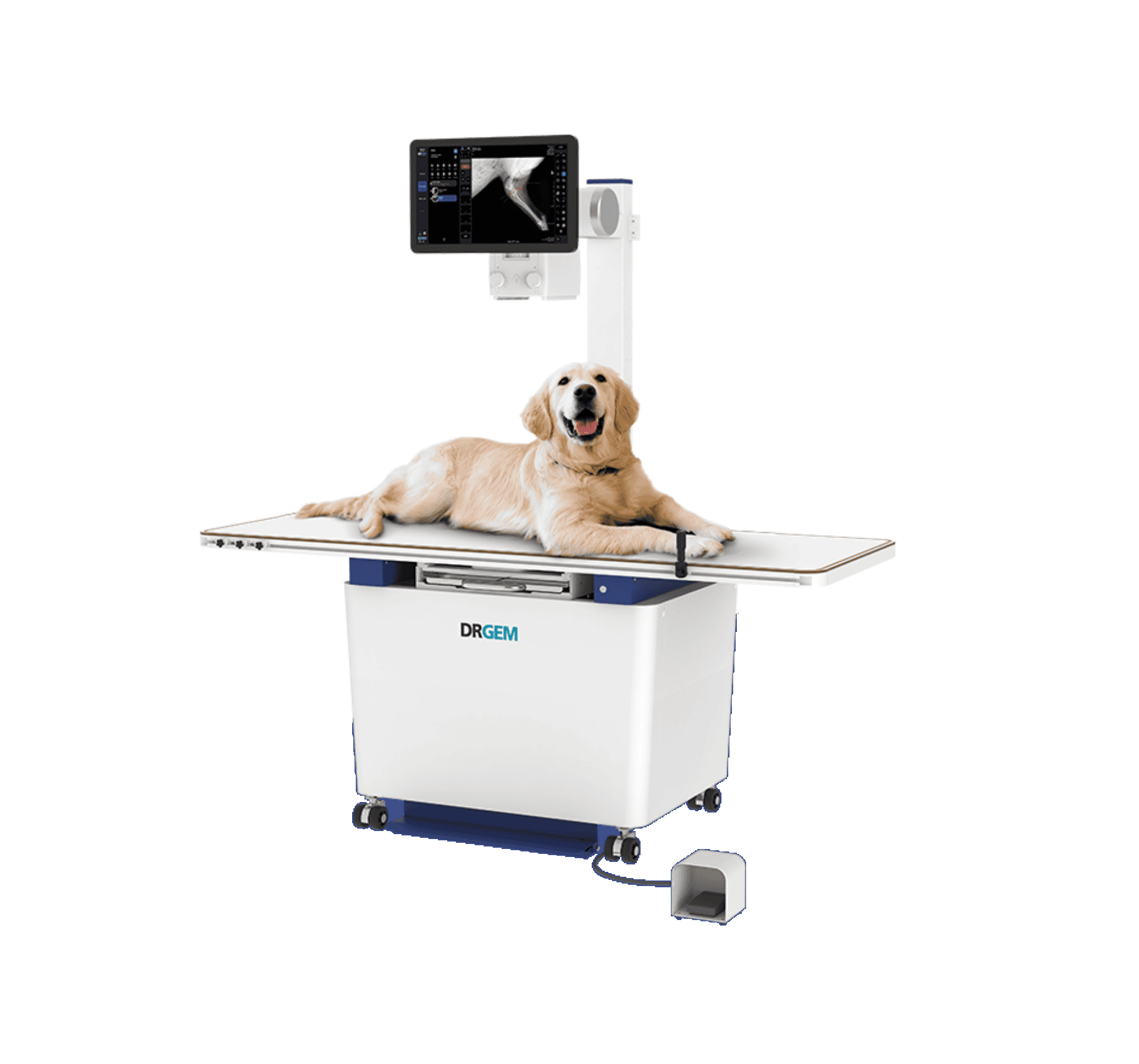

VXR-E/EC Veterinary X-ray

Compact & Powerful Vet System

VXR-E/EC is a compact, efficient veterinary X-ray system offering powerful imaging, advanced diagnostic tools, and user-friendly design for precise and reliable performance.

The VXR-E and VXR-EC Series by DRGEM are compact and powerful veterinary X-ray systems designed for efficient use in clinics with limited space. It integrates a generator within the table for a space-saving solution and features DRGEM’s robust digital imaging software, RADMAX, for optimized workflow and high-quality image processing. The VXR-E operates on standard 110v electrical power, while the VXR-EC is capacitor-powered, providing reliable operation even in environments with inconsistent electricity supply. The system is fully DICOM 3.0 compatible, ensuring seamless integration and data management.

Additional features tailored for veterinary use include options such as a foot exposure switch, compression belts, and urine traps, enhancing operator convenience and patient care. The system supports specialized measurements like Vertebral Heart Scale (VHS) for cardiac assessment and Tibial Plateau Leveling Osteotomy (TPLO) for joint evaluation. Maintenance is simplified with self-calibration, remote diagnosis capabilities, and intuitive controls, including an angle-adjustable touch screen console and graphical anatomical program radiography (APR) for efficient parameter adjustments.

Available as a fully-integrated system with DR system or as an analog system to use with existing imaging device.

Compact Design for Any Space

With its generator integrated into the table, VXR-E/EC fits seamlessly into clinics with minimal space, offering efficiency and flexibility without compromising performance.

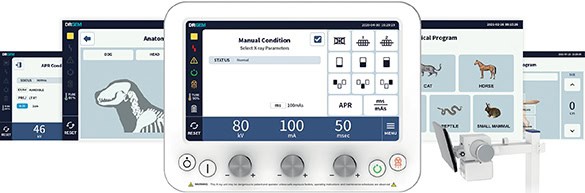

Intuitive Touch Screen Control Console

VXR-E/EC features a user-friendly control console with an adjustable angle for easy viewing. Its touch-friendly GUI, simple knob controls for exposure settings, and Graphical User APR streamline workflows, ensuring precision and efficiency in veterinary imaging

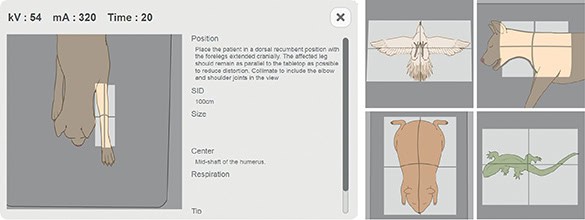

Animal Positioning Guide

VXR-E/EC includes an Animal Positioning Guide, offering detailed instructions in both graphical and textual formats. This feature serves as a valuable learning tool and reference, helping veterinarians position animals accurately for optimal imaging results and improved diagnostic precision.

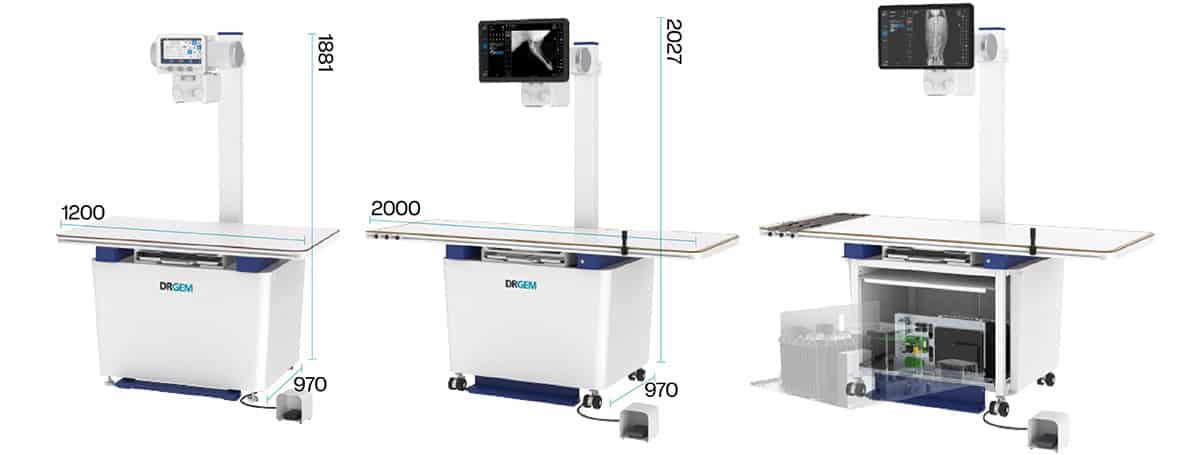

Space-saving Design

Designed with compactness in mind, VXR-E/EC features a generator integrated into the table, making it ideal for clinics with limited space. This innovative design maximizes functionality without compromising on performance, ensuring seamless integration into any veterinary practice.

4-way Floating Tabletop

The 4-way floating tabletop enhances ease of use and positioning during imaging procedures. Its smooth, multi-directional movement allows veterinarians to effortlessly adjust the table for optimal animal positioning, ensuring accuracy and comfort for both operator and animal.

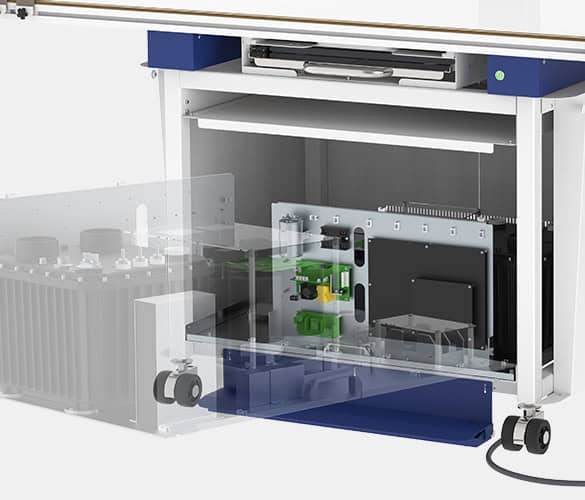

VXR-EC Capacitor Powered Generator

The VXR-EC model includes a capacitor-powered generator, offering stable performance in environments with unreliable electricity supply. This technology provides consistent energy output, ensuring dependable operation and high-quality imaging in any setting. Standard capacitor generator for the USA is 40kW. Capacitor technology allows for continuous x-ray with minimal time (2-3 seconds) between exposures.

Various Measurement Tools

Equipped with specialized tools like the Vertebral Heart Scale (VHS) and Tibial Plateau Angle (TPLO), VXR-E/EC aids veterinarians in diagnosing heart conditions and joint issues. These advanced measurement features provide precision and reliability in orthopedic and cardiac evaluations.

Features

Compact, Space-Saving Design: Integrates the generator within the table, making it ideal for clinics with limited space while maintaining a powerful imaging setup.
Versatile Power Options: The VXR-E operates on standard power, while the VXR-EC uses capacitor power, ensuring reliable operation even in areas with unstable electricity supply.
DICOM 3.0 Compatibility: Ensures seamless integration with digital workflows, providing efficient data management and connectivity with other imaging systems.
Specialized Veterinary Features: Includes tools such as Vertebral Heart Scale (VHS) and Tibial Plateau Leveling Osteotomy (TPLO) measurements for targeted diagnostic evaluations.
Remote Diagnosis and Self-Calibration: Features remote diagnostic support and automated self-calibration, minimizing downtime and enhancing system reliability.

Jade Veterinary Stand System

Convenient, powerful, affordable X-ray system for Veterinary applications where space is limited. System can be purchased with or without mobile exam table. Includes X-ray stand and Jade generator.

Available as a stand-alone system or integrated with a DR System.
