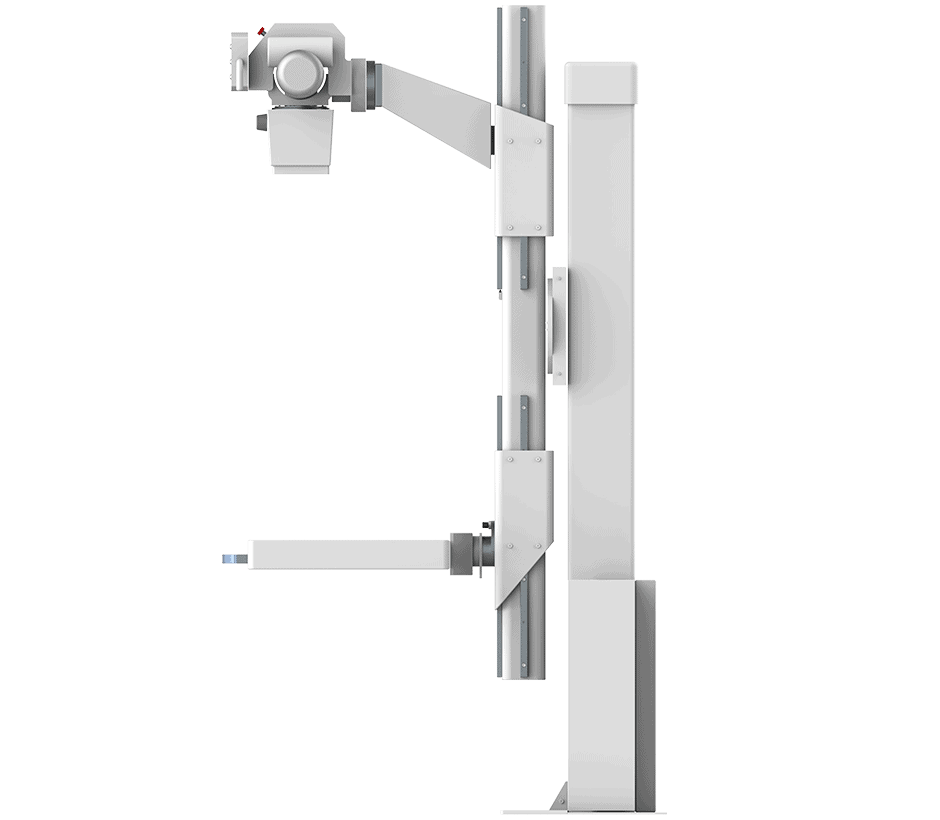

MasteRad SA-1000 Straight Arm System

The all-new MasteRad™ series offers you a fully-programmable, cutting edge, acquisition software with user-friendly touchscreen interface. Fully motorized, minimized and optimized for limited space to fit in a room with an 8′ ceiling.

The SA1000 provides a cost effective flexible imaging solution that satisfies a wide range of radiographic exams for a wide range of settings such as Urgent care, General practitioner’s offices as well as Orthopedic and Chiropractic practices.

SA 1000 Overview Movements

• Dimensions: 80.9”W x 90.5”H x 30.3” D
• Motorized SID: 39.4” to 70.8”
• Vertical Movement: ( Motorized ) 50.7”
• Arm Rotation Angle: +120° to -30 °
• Single button control on Remote for Chest or Table position views
• Tube Rotation: +/- 90 °
• Bucky Tilting ( Manual ) +/- 45 °
• Positioning Controls- Tube head push button controls for SID distance, Height of Straight Arm and angulation of Arm which is also available on the Remote Control.  Angulation of Detector is manual after lock release.
• Anti- Collision sensor on Arm and Detector, stops movement and moves arm back 3.9” on resistance of 22 lbs or greater

X-ray Generator

• Standard CPI 32 kW High Frequency, Option for 40 kW is available.

X-ray Tube

• Toshiba 140 kHU 1.0-2.0 focal spot, Operating Voltage 40-125kV
• High Voltage cables -10m

Collimator

• Manual LED over 160 Lux, 30 sec timer. Filter 1.2mm, AI, rated Tube voltage 125kVp

Grid

• 103 LP 10:1
